Geared Motors

Using the latest design technology, Hyosung Heavy Industries provides tailored solutions to meet a diverse range of customer needs.

Our precise design technology optimizes strength distribution, reduces the size and weight of products, and improves accuracy to ensure low noise and extended product life (over 20,000 hours).

Product Classification

Discover custom solutions that meet your needs.

Parallel Shaft Geared Motor (F, RP series)

Features
F Series Compact & lightweight By using computer optimization techniques and incorporating a DX bush for the bearing on the output shaft's anti-load side, we have achieved product miniaturization and lightweighting (0.4–3.7kW) while maintaining high rigidity and compactness
High efficiency & fixability The utilization of computer-aided design and gear polishing has resulted in a product that operates at a high efficiency rate of 97% or more and low noise with increased durability and tensile strength
Free mounting To ensure that the product can be mounted freely (ranging from 0.4–3.7kW), we utilize grease as a lubricant, which is completely sealed. Additionally, we incorporate a high-quality oil seal and a specially developed sealing device to prevent any oil leakage
Durability Our products are highly dependable and have been designed to comply with the AGMA II Class safety factor (S.F=1.4 to 2.0), ensuring their durability
RP Series Compact & lightweight Compact & lightweight Miniaturization and lightweighting are achieved through optimal distribution of strength, while maintaining the ease of handling
Low noise & consistency Manufacturing gears with high precision and using advanced gear noise-reduction equipment and designs enables quiet operation and low noise levels
Extended product life The use of long-lasting, high-quality grease with good lubrication and high fluidity eliminates the need for maintenance or repair for over 20,000 hours
Ease of installation The product's complete sealing with grease lubrication minimizes installation restrictions
Rapid delivery All standard products secured as semi-finished goods, enabling rapid fulfillment of customer demands

Parallel Shaft Geared Motor (H series)

Features
Standardized casing Integration of bearing housing
High strength & robustness The output side does not have a bolt-secured cover, but the case can support the overhung load or thrust load sufficiently
Smooth operation and low noise Smooth operation and low noise achieved thanks to the gear and case designs that dampen vibration and reduce gear noise, and the use of top-notch equipment to manufacture high-precision gears
High precision Simultaneous machining of all bearing housings in a single machine setting is used to achieve high precision
Free mounting position Installation is flexible and unrestricted, as it can be carried out based on the installation conditions of the site, thereby minimizing any installation limitations
Low maintenance costs The number of operational issues has been greatly reduced by minimizing the number of parts used in comparison to similar products currently available
Rapid delivery Rapid delivery of products in response to customer demands is possible with standardized components

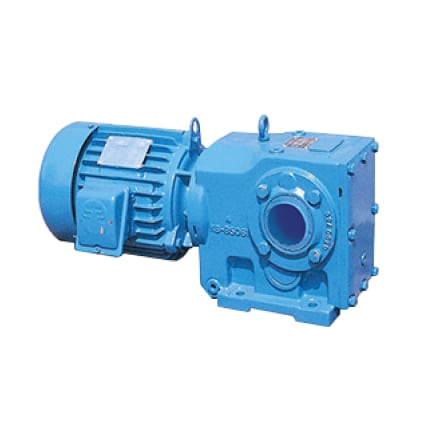

Right Angle Geared Motor (K series)

Features
Smooth operation and low noise Smooth and low noise achieved thanks to the gear and casing designs that dampen vibration and reduce gear noise, and the use of top-notch equipment to manufacture high-precision gears
Free mounting position Installation is flexible and unrestricted, as it can be carried out based on the installation conditions of the site, thereby minimizing any installation limitations
High strength & high robustness High strength achieved through the use of robust cast housing and an output bearing designed to account for axial load
Various mounting methods Hollow shaft and solid shaft, foot mounting, flange mounting, and shaft mounting available
Rapid delivery Rapid delivery of products in response to customer demands is possible with standardized components

Planetary Geared Motor (P series)

Features
Miniaturization & lightweighting The use of concentric shafts and multiple planetary gears for power distribution enables miniaturization and lightweighting, while the integration of durable and well-insulated Hyosung motors reduces volume
High precision & high efficiency To minimize tooth loss and maximize efficiency, the high-quality alloy steel gear teeth are carburized and heat-treated, then made into the optimal shape
Extended product life & low noise The solar gear has equivalent strength to a conventional geared motor in the same class, but its use of multiple planetary gears to distribute power results in twice the lifespan and significantly reduced noise
Ease of handling Due to the concentric symmetry of the input and output, no special tools are required for assembly or disassembly, making the process simple and easy
Product reliability Planetary gear reduction enables high reduction ratios of 1,000,000:1 or more, facilitating miniaturization and lightweighting, and the use of computer-aided design ensures high reliability

References

Our track records speak for ourselves.

  • Vietnam

    Hyundai Heavy Industies / 700Ton Goliath crane

    • KHHM12 15kW
  • Vietnam

    Hyosung Chemical / Stacker Crane

    • KHHM 22kW
  • Vietnam

    Minh Phu / Aquaculture

    • RPH 2.2kW
  • Vietnam

    Hyosung TNC / Gear Pump

    • FHC 0.818kW
  • Indonesia

    Korindo Heavy industry / Coal Conveyor

    • FHM 75kW
  • Bangladesh

    Heidelberg Cement / Cement conveyor

    • FHB 15kW
